Material |

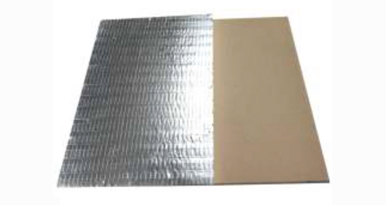

NBR Foam laminated on one side with highly reflective aluminum foil |
|
|
|
Nominal thickness |
mm |
8 (± 1mm) |
|
|
Packing Standard (WxL) |
m |
1.2x40 |
|
|
Density |
kg/m3 |
40-60 |
ASTMD1056 |
|
Service Temperature |
°C |
-40 to +110 |
|
|
Emissivity |
% |
<12 |
ASTM C1371 |
|
Reflectivity |
% |
>88 |
ASTM C1371/ E903 |
|
Thermal Conductivity @ 20°C |
W/mK |
≤0.033 |
|
|
Thermal Resistance @ 20°C |
M2 K/W |
0.242 |
ASTM C423/ ISO354 |
|
Noise reduction coefficient |
|
0.25 |
|
|
Water vapor diffusion resistance index |
|
≥12000 |
ASTM E-96 |
|
Bleeding & Delamination Test |
|
Pass |
ASTM C1224 |
|
Fungal resistance test |
|
No growth |
ASTM G21 |
|
Ozone Depleting substances (CFC/HCFC) |
|
Not detected |
GC-MS |
|
Surface flame spread |
|
Class 1 |
BS-476 Part 7 |
|
Rate of Burning |
|
Pass |
HB (UL 94) |
|
Practical Fire Behavior |
|
Self-Extinguishing, doesn’t drip & doesn’t spread flames |
ASTM D635 |
|
Odour |
|
Negligible |
|
