Aerocell Class O

Product Description

AEROCELL is a closed cell flexible elastomeric foam made from Nitrile Rubber. This material has low thermal conductivity and high water vapour diffusion resistance. It is CFC/HCFC free, dust and fiber free and ensures energy saving. This product meets insulation requirement in diverse fields such as the HVAC & R, Construction, Pharma, Hotel, Hospital, Process and Cold storage industries.

Advantages

FAB1
  • High water diffusion resistance
  • FM Approved
  • Superior thermal insulation properties
FAB2
  • Flexible, durable and fibre free
  • Excellent fire resistance
  • Easy to install and handle

Applications

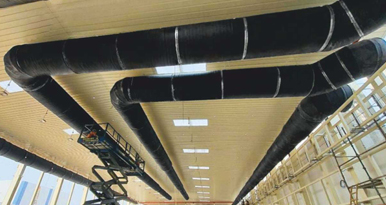

Insulation to prevent condensation and reduce energy loss on HVAC ducts, pipes, tanks & equipments.

Assembly

Aerocell can be used together with ALP Aeroflex adhesives (Aerostick) for a complete insulation system

Product Range

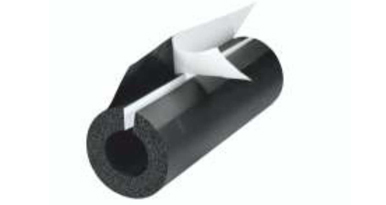

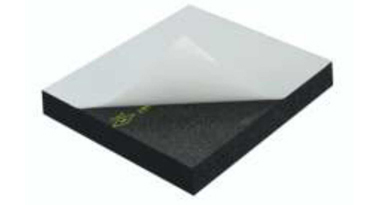

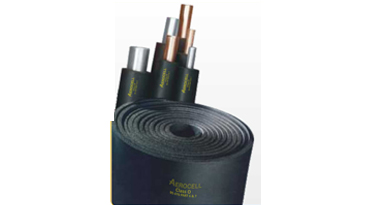

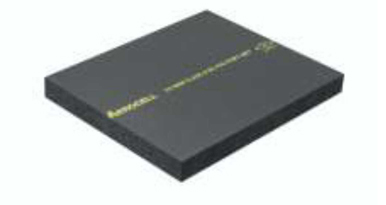

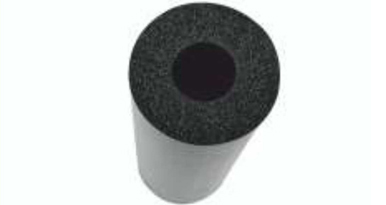

Available in plain and self-adhesive rolls (sheets) in 9, 13, 16, 19, 25, 32 mm thickness of 1000 mm wide rolls

Technical Details

PROPERTIES VALUES TEST METHOD
Thermal conductivity W/m.K ≤0.035 W/m°K at 10°C; ≤0.036 W/m°K at 20°C ≤0.037 W/m°K at 30°C; ≤0.038 W/m°K at 40°C ASTM-C-518
Water vapour diffusion resistance factor (µ) ≥7000
Cell Structure Closed Cell
Temperature Range* -40°C to 105°C
Density (Kg/m3) 40 to 60 ASTM-D-1056
Ecological Data No asbestos, No HCFC - CFC, No Formaldehyde - Cd-Hg etc.
Ozone Resistance Very Good
Odour Negligible
Reaction to Fire
a) Fire performance according to building regulation Class 0 BS 476 Part 6
b) Surface flame spread Class 1 BS 476 Part 7 : 1997
c) Fire Propagation I<12 & i1<6 BS 476 Part 6 : 1989
d) Rate of burning (Vertical Position) Class V-0 UL 94 : 1997
e) Practical fire behavior Self-Extinguishing, does not drip and does not spread flames ASTM D 635-18
FM Approval   Approved
