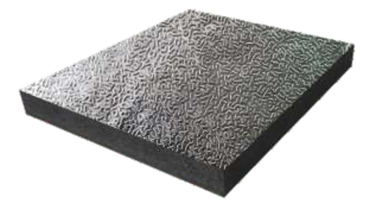

Aerocell ALU EN

Advantages

FAB1
  • μ≥ 60000
  • Easy to apply, clean and maintain
  • Durable & erosion resistant
  • Embossed foil for excellent aesthetics
FAB2
  • Class 0
  • FM approved

Applications

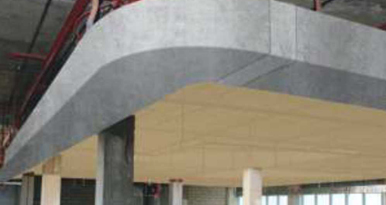

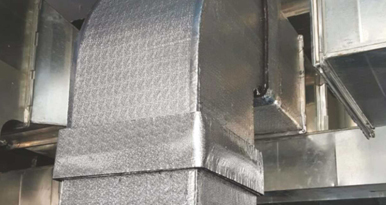

Insulation to prevent condensation, reduce energy losses and protection against mechanical damage on HVAC ducts/ pipes and also used in clean room application such as the pharmaceutical industries.

Assembly

Aerocell-ALU EN can be used together with ALP Aeroflex adhesives (Aerostick) for a complete insulation system.

Product Range

Available in plain and self-adhesive rolls (sheets) in 9, 13, 16, 19, 25, 32 mm thickness of 1000 mm wide rolls.

Technical Details

PROPERTIES VALUES TEST METHOD
Thermal Insulation Core Closed Cell Elastomeric Nitrile Rubber Foam
Laminate 60 micron embossed aluminum foil
Thermal conductivity (k value) ≤0.035 w/m°K at 10°C; ≤0.036 w/m°K at 20°C ≤0.037 w/m°K at 30°C; ≤0.038 w/m°K at 40°C ASTM C 518
Water vapour diffusion resistance factor (µ) ≥60000 ASTM E-96/ EN13469-2016 & EN12086
Density (Kg/m ) 40 to 60 ASTM-D-1056
Service Temperature -40°C to 105°C
Fire & Smoke Characteristics
A) Fire performance according to building regulation Class 0 BS 476 Part 6
B) Surface Flame Spread Class 1 BS 476 Part 7 : 1997
C) Fire Propagation Total Index (I) <6 BS 476 Part 6 : 1989
D) Rate of Burning (VerticalPosition) Class V-0 UL 94-1997
E) Practical Fire Behaviour Self-Extinguishing, does not drip, does not spread flames ASTM D635 – 18
Ozone depleting substances (CFC/ HCFC) Not detected, No Asbestos GC-MS
FM Approval   Approved
